OASIS 微電腦控制盒

ROTEK淨水設備新產品優化具有智能功用-提供遠端無線水質/流量、濾材更換、異常警示監控及手機APP等服務，強化了售服維護管理以及葳錦、經銷、客戶三層管理的模式。

Hits: 771

Written by Max on 15 March 2023. Posted in page.

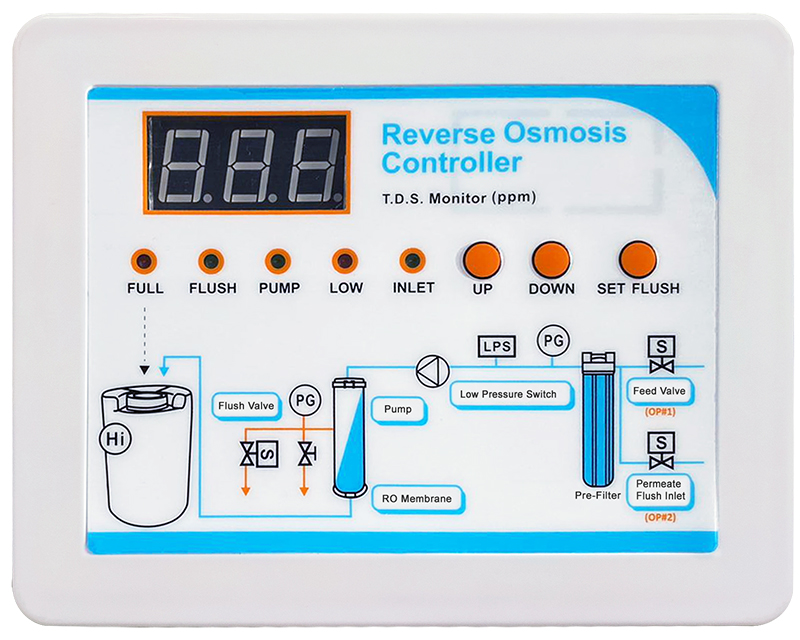

OASIS Cloud RO Controller

The OASIS Cloud RO controller is design for monitoring your reverse osmosis water system from anywhere, anytime, 24/7. You can easily to keep track of your RO system status at all times! Provides All Parameters Required for RO Operation Most RO equipment on the market is designed to use a raw water flushing mechanism. However, in brackish water and seawater desalination RO equipment, pure water flushing is applied to greatly extend the life of the RO membrane. The Oasis RO controller can be used in both applications.

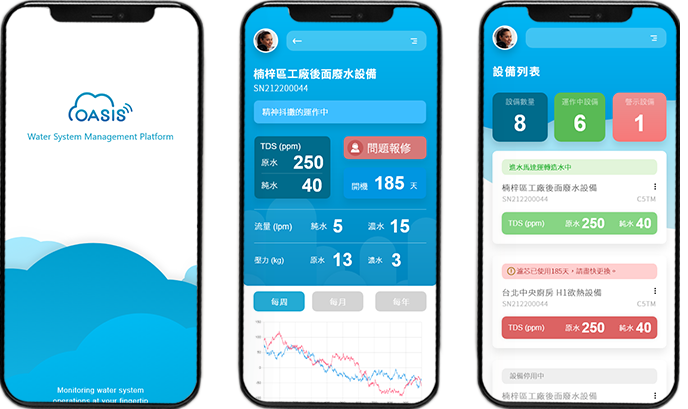

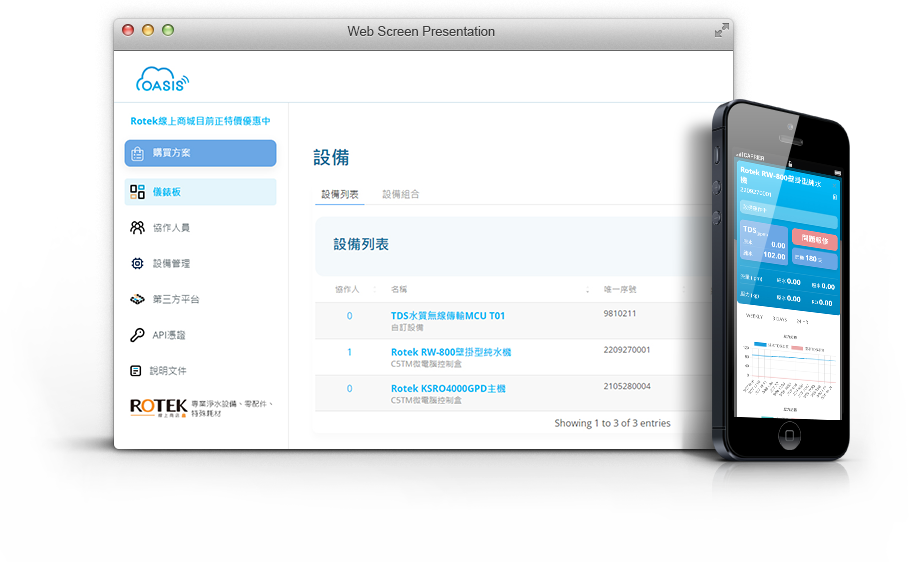

OASIS Cloud Management Platform

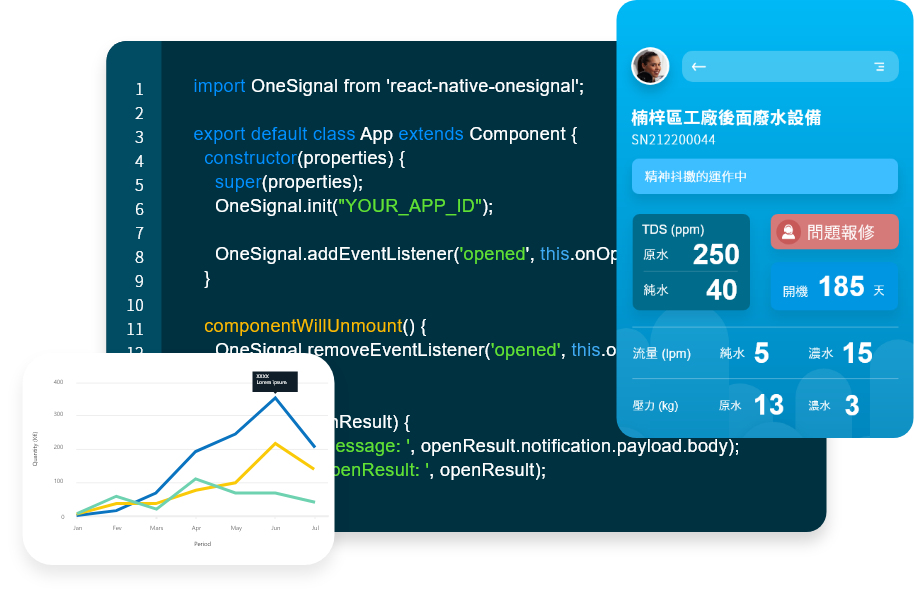

The OASIS Cloud Management Platform can provide more complete operational data, simple and clear design allows you to see at a glance how many devices are operating or alerting through mobile phone or desk top computer. It provides you with a convenient integrated IoT analysis platform service that allows You can monitor various devices anytime and anywhere with visual real-time data charts and analysis tools.

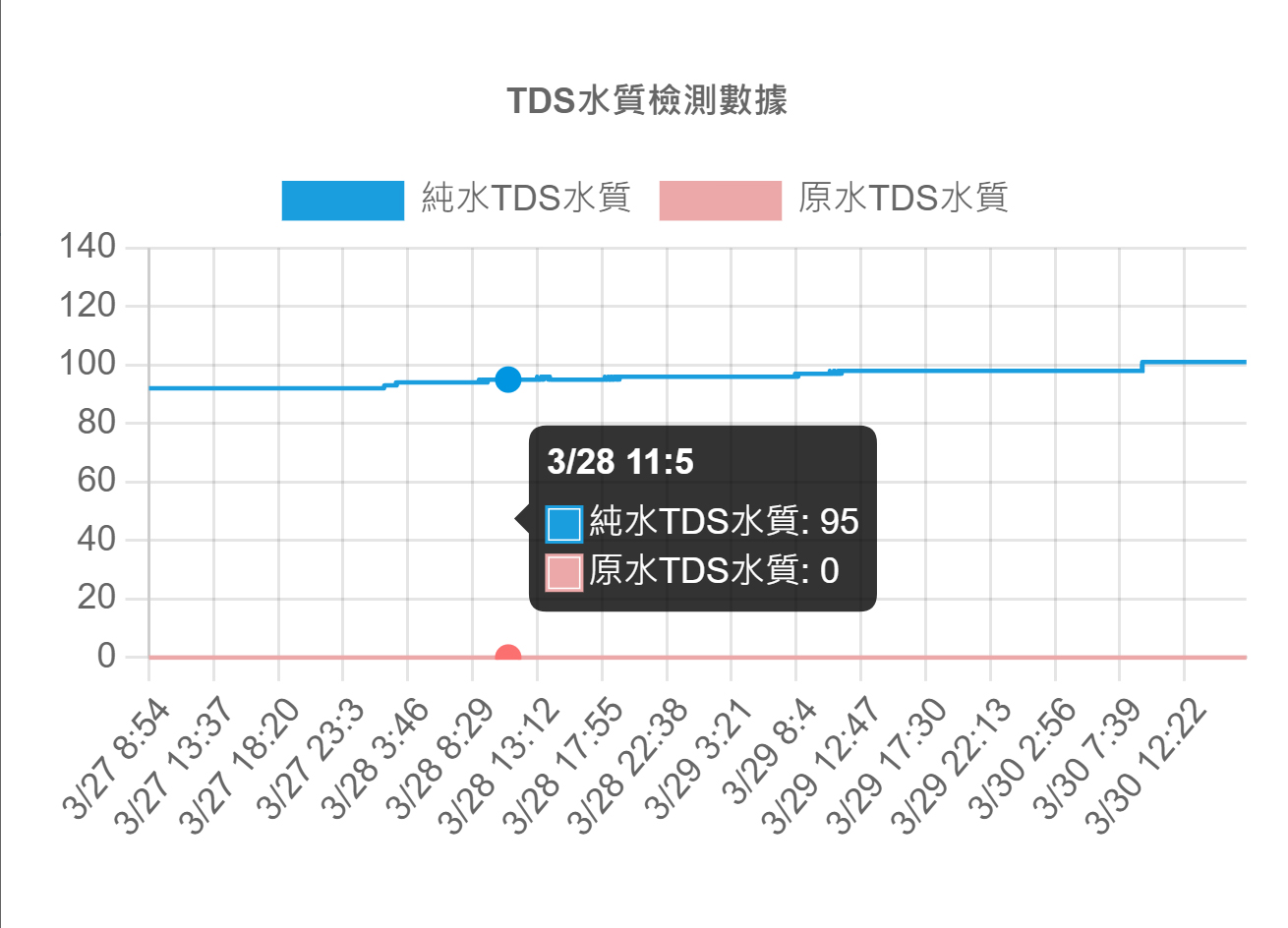

Diversified Curve Data Analysis

You can select the �me axis (day/week/month/quarter/year) you want to browse through the menu, and view the curve trend of different data (water quality/flow/pressure) It is easier to analyze the membrane fouling trend, find the �me point when the RO membrane needs to be cleaned, and prolong the service life

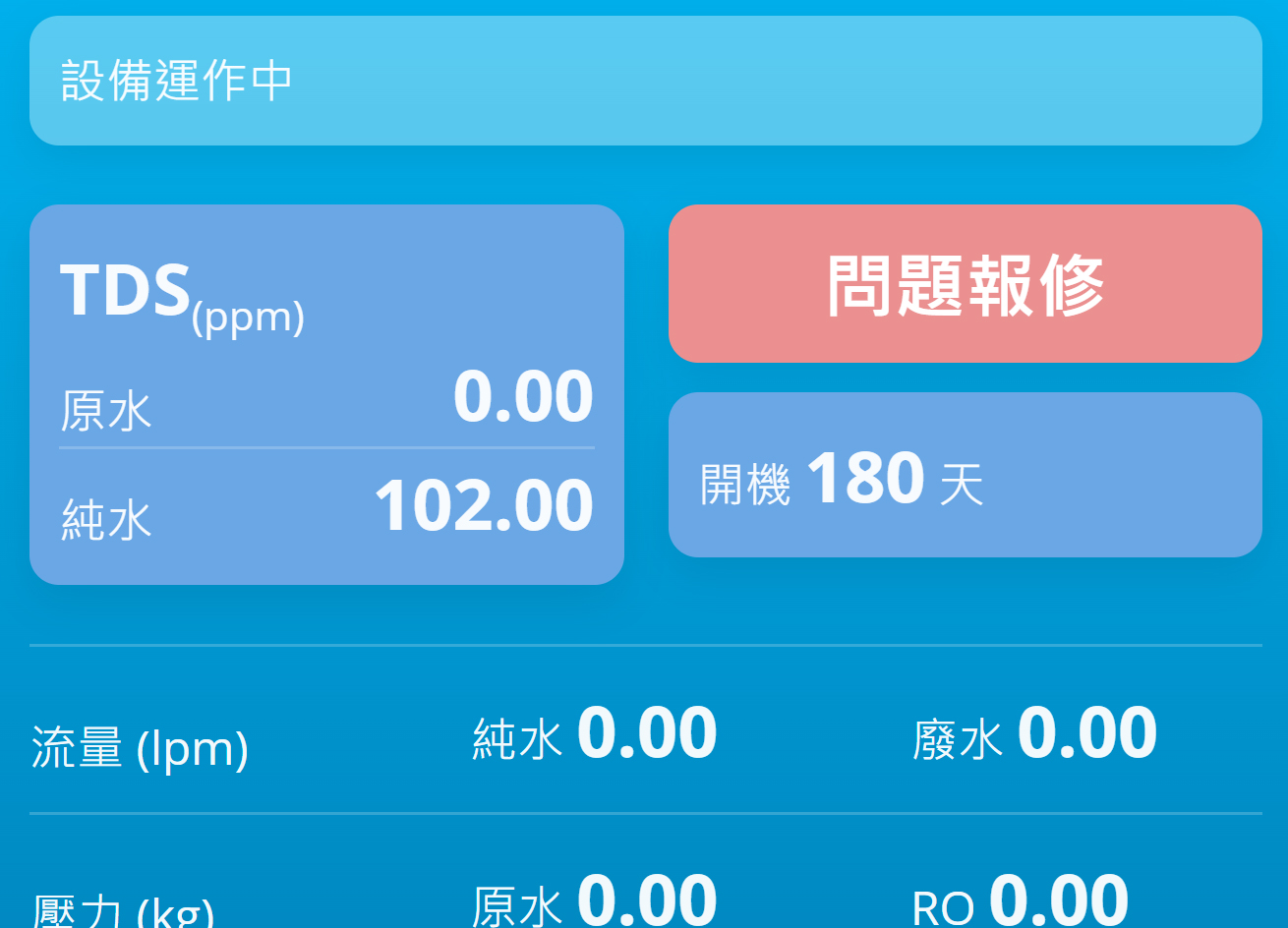

One Click for Service Request

Both the mobile APP and the web browser have the application function for Service Request. The distributor will be notified and arranged for follow-up matiers as soon as the demand is sent.
Customizable Alarm Parameter Setting

As long as there is data, alarm points can be set, which include water quality, operating flow and operating pressure. Diversified alarms Point setings can be applied to different business models.

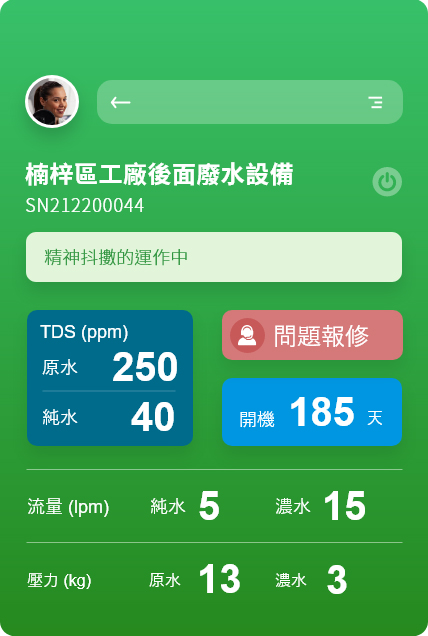

Provide All Required Parameters for RO Operation

Oasis Wifi RO Controller provides 7 major parameters

Operation Status and Time
Raw Water (TDS) up to 9990ppm
Permeate Water (TDS) up to 999ppm
Feed Water Pressure(Kg) up to 20 Bar
RO Pressure(Kg) up to 20 Bar
Permeate Water Flow Rate (LPM)
Concentrate Water Flow Rate (LPM)

Patented Raw-Water/Pure-Water Flushing Switching Mechanism

Most RO systems on the market are designed with raw water flushing, but in brackish water and seawater desalination RO applied with permeate water flushing can greatly extend the life of the RO membrane. The Oasis Wifi RO controller can be used for both applications.
Readjustable Flushing Time

Different levels of flush frequency and duration depends on raw water quality and the ion saturations of the concentrate stream. Oasis Wifi RO controller has 3 types of flush mode (Start-Up Slow Flush / Timer Fast Flush / Tank Full Slow Flush). All above flush frequency and durations are adjustable freely for different projects.
Remote Emergency Shutdown and Password Setting

The user can use the mobile phone or computer internet to give the shutdown command if necessary, even if someone wants to start the device on the spot, he must enter the password to start it normally. This function can be applied to the rental business model.

Read more …OASIS WIFI微電腦控制盒

Hits: 1821

Written by Max on 26 December 2022. Posted in page.

Contact

Hits: 965

Written by Max on 26 December 2022. Posted in page.

Products

Hits: 1060

Written by Max on 26 December 2022. Posted in page.

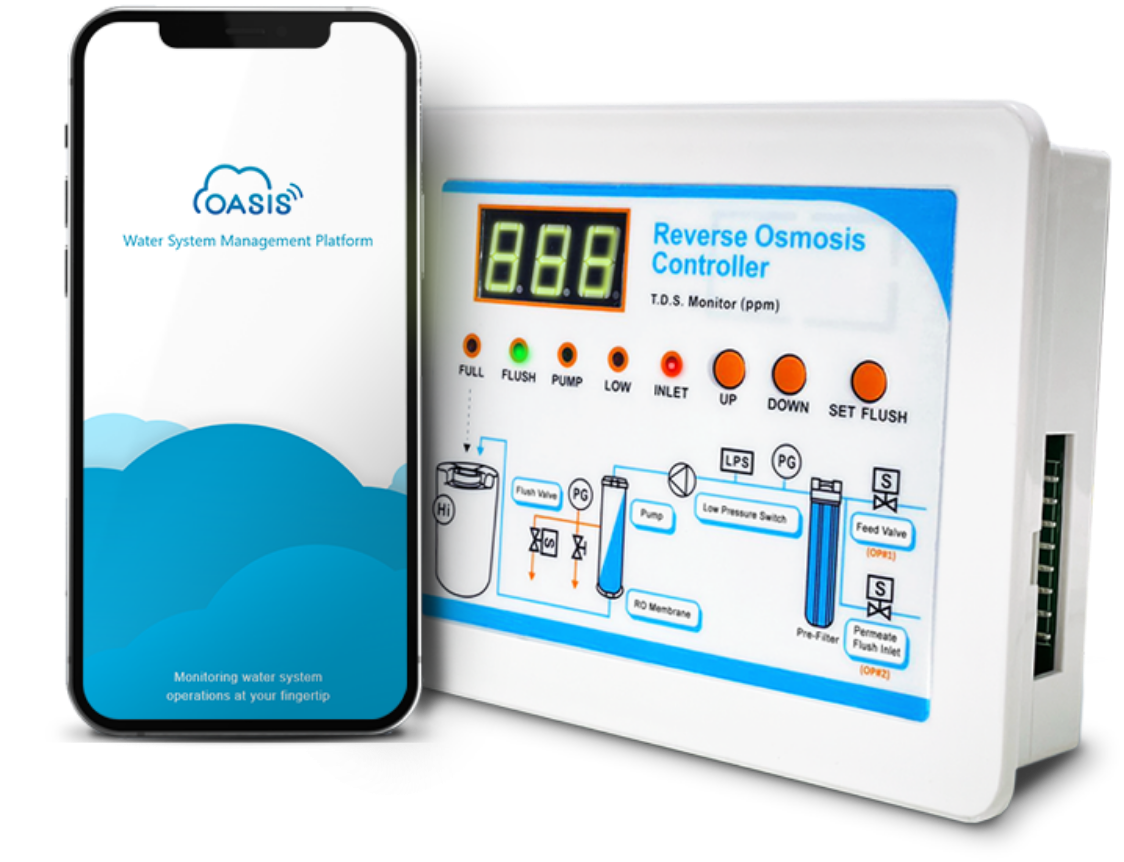

OASIS

Cloud monitoring RO controller

Keep track of your device status at all times!

The OASIS management platform can provide more complete operational data, simple and clear Design allows you to see at a glance how many devices are operating or alerting

Automatically start flushing

After the system is turned on, the system will start to perform the power-on flushing action. You can see that there will be a countdown on the screen display during the power-on flushing.

Product description

Remote monitoring

After powering on, the system will start to perform the power-on flushing action. You can see the screen display during power-on flushing.

Product description

Efficient automated procedures

After the system is turned on, the system will start to perform the power-on flushing action. You can see that there will be a countdown on the screen display during the power-on flushing.

Product description

OASIS provides you with a convenient integrated IoT analysis platform service that allows You can monitor various devices anytime and anywhere with visual real-time data charts and analysis tools.

原水/純水沖洗模式靈活切換

OPA 原水沖洗模式

原水在TDS1000ppm以下的水質，系統可以設定為OPA模式。

OPA 原水沖洗模式

原水在TDS1000ppm以下的水質，系統可以設定為OPA模式。

純水TDS顯示，隨時掌握水質狀態!

FULL
儲水桶滿水狀態
FLUSH
儲水桶滿水狀態
PUMP
儲水桶滿水狀態
LOW
低水壓警示

Automatic reset type fuseless switch

As long as a higher than designed current is detected, power-off protection will be activated. Solved the problem of frequent replacement of fuses and damage to the control box.

CE, EMI/EMC anti-electromagnetic interference

Improves damage caused by voltage instability and resists electromagnetic interference, greatly improving safety and stability!
